Alpha Inclinometer

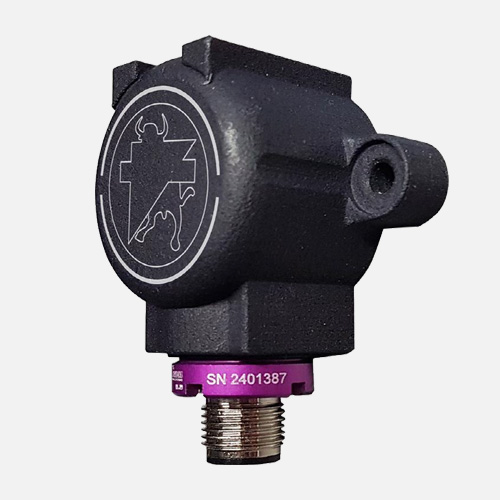

ALFA is a micro inclinometer, its dimensions are very small, but its performance is very high! It is perfect for applications on vehicles where the Machinery Directive requires a high level of safety. The sensor is designed to fit the arms of different types of vehicles. It reads the angle in the 3 axes, X Y Z, which is also ideal for checking the flatness of the carriage.

Scope of application

This sensor can be installed directly on the boom or on the chassis of industrial machines, such as aerial platforms, cranes, excavators, loaders, to read the angle of inclination. It is manufactured in compliance with EN ISO 13849-1 and EN ISO 13849-2 PL c. Available in CANopen or with programmable 4-20 mA output.

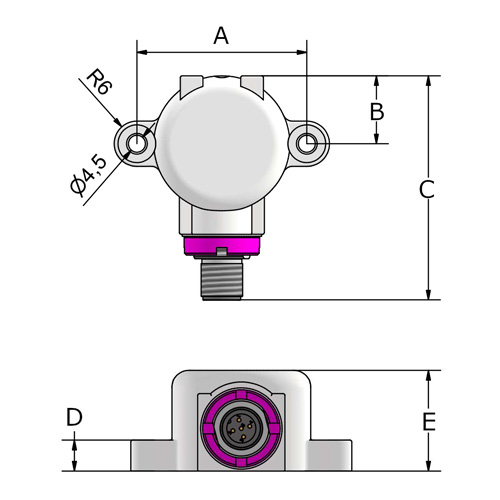

Dimensions

ABCDEF
5 mm18 mm60 mm8 mm26 mm85 mm
Alpha Inclinometer

Application examples

ALFA can be used to read the angle of the arms and the flatness of the carriage of different operating machines, such as aerial platforms, cranes, excavators, loaders. Below are installation examples .

Alpha Inclinometer

Data sheet

  • Power supply 10 … 30 Vdc
  • 16-bit RISC processor @ 64 MHz
  • Memoirs:
    • 256 KByte program Flash Memory
    • 24 KByte system RAM
    • 32 KByte EEPROM
    • DAC 12 bit
  • 1 accelerometer with 3-axis readout used for position reading .
  • Possibility of installing the sensor on the right or left side
  • Non-volatile memory: 32 KByte EEPROM
  • Watch Dog timer
  • Internal software can be reprogrammed with CANopen boot loader
  • Dual uController boards, for a fully redundant module
  • Externalconnection, with connector, at the bottom (DW): a. CANopen, managed 8 rpdo and 8 tpdo b. Analogue input 4 … 20 mA programmable
  • IP68
