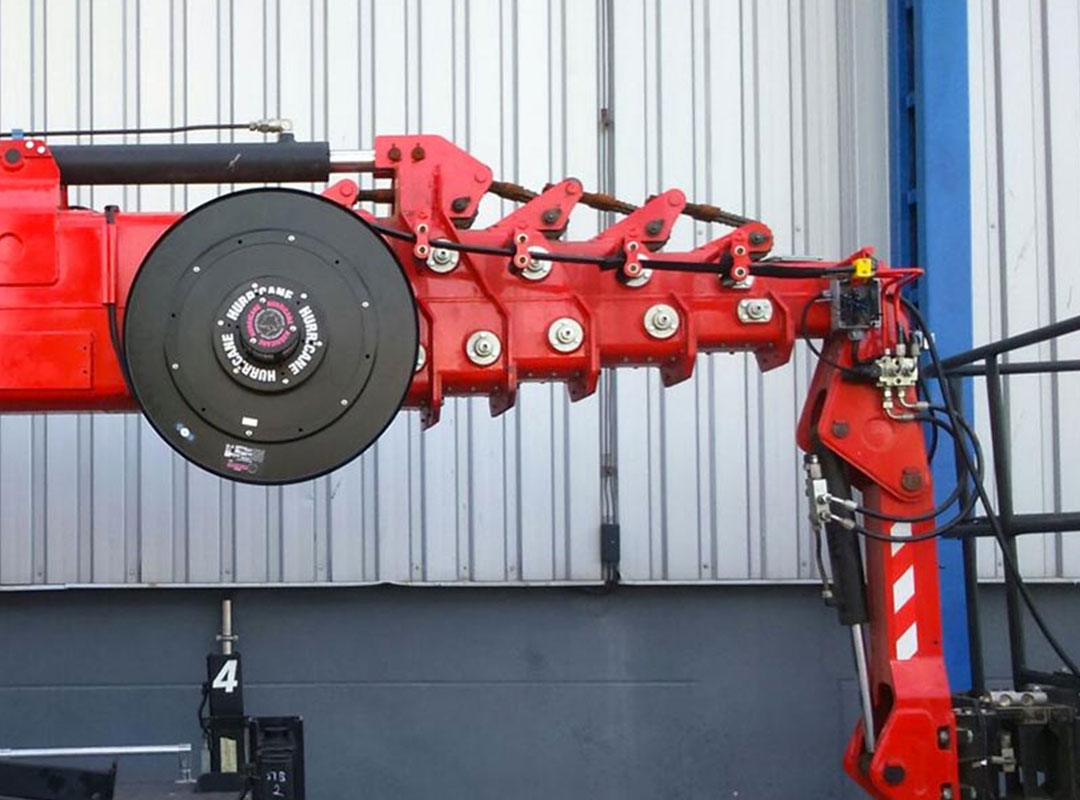

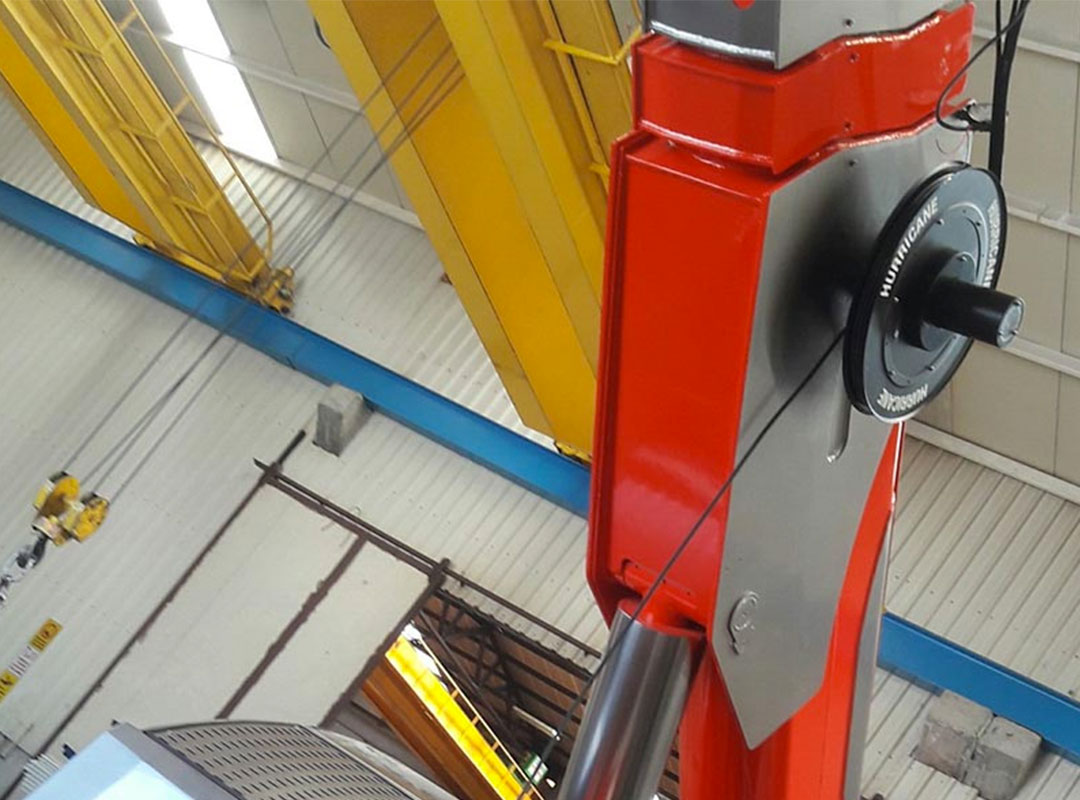

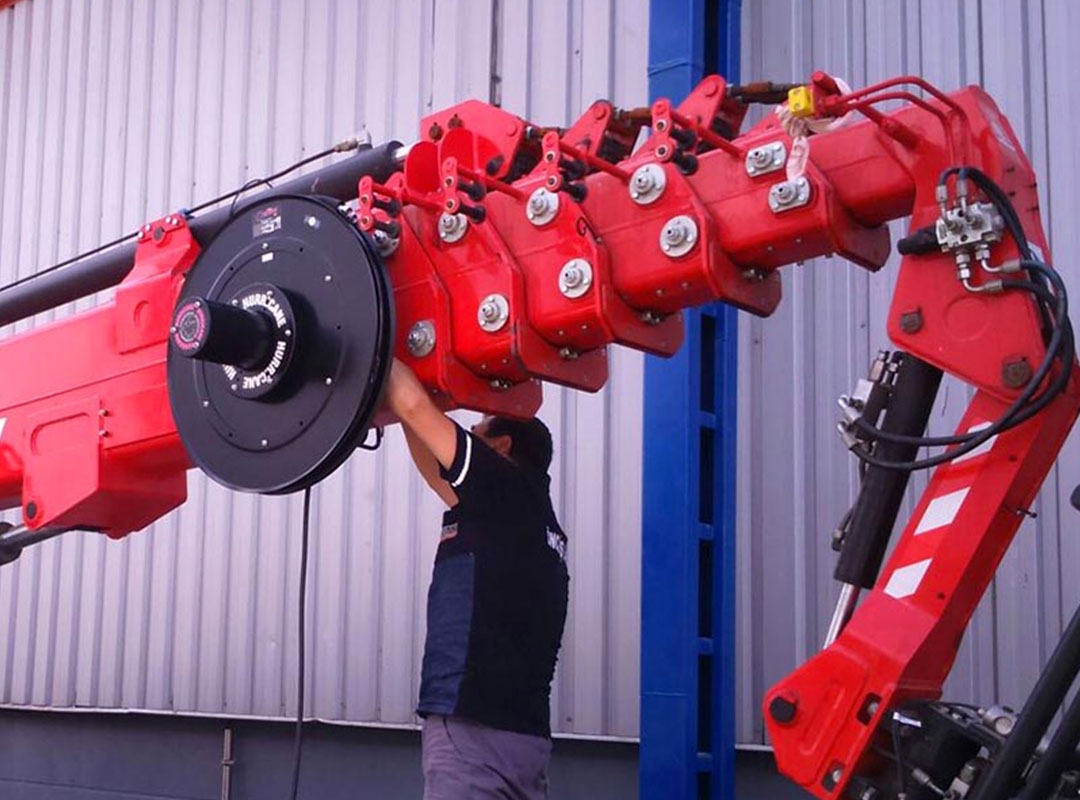

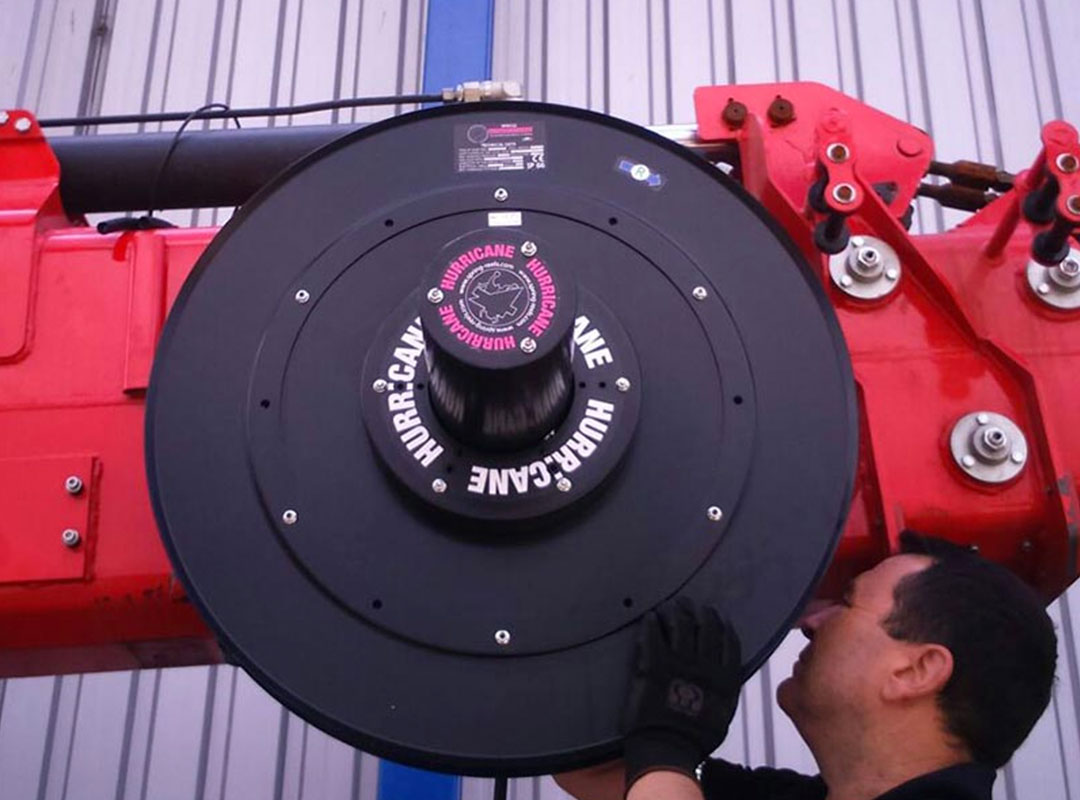

ALL-IN-ONE system, hydraulic winder, electrical, angle/wire sensor, available in CAN BUS A revolutionary ALL in ONE product! It manages the functions of a hydraulic winder, reading of power signals, angle sensor, extension sensor . Manufactured in compliance with SAE 100 and UNI EN ISO 13849-1 / UNI EN ISO 13849-2 PL d. Available with CAN OPEN communication protocol .

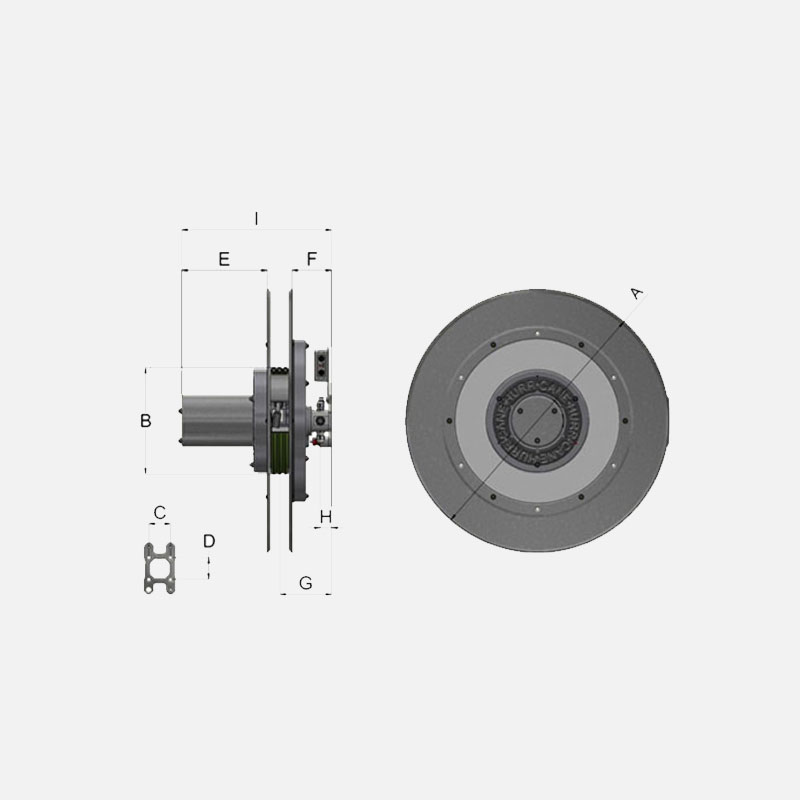

MODELLO | A | B | C | D | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|---|
5.6 M | 400 mm | 175 mm | 60 mm | 60 mm | 170 mm | 120 mm | 140 mm | 30 mm | 348 mm |
22 M | 720 mm | 175 mm | 60 mm | 60 mm | 170 mm | 120 mm | 140 mm | 30 mm | 348 mm |
MODELLO | Cavo | Cavo Ø | Pressione Max | Portata | Contatti | Uscita del cavo Destra | Uscita del cavo Sinistra | Uscita del cavo Superiore | Uscita del cavo Inferiore | Prova di nebbia salina |
---|---|---|---|---|---|---|---|---|---|---|
5.6 M | 5.6 mm | 3/8" | 225 bar | 30 l/min | 3 â 4 â 6 | ✔ | ✔ | ✔ | ✔ | 1000 h |
22 M | 22 mm | 5/16" | 195 bar | 28 l/min | 16 | ✔ | ✔ | ✔ | ✔ | 1000 h |
22 M | 22 mm | 5/16" | 240 bar | 28 l/min | 16 | ✔ | ✔ | ✔ | ✔ | 1000 h |
Please fill in the fields in the form. Our customer service will contact you and provide you with all information about this product.
