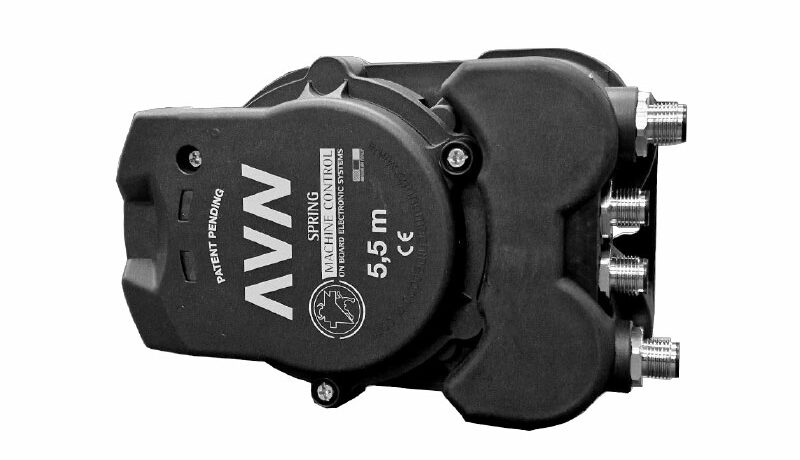

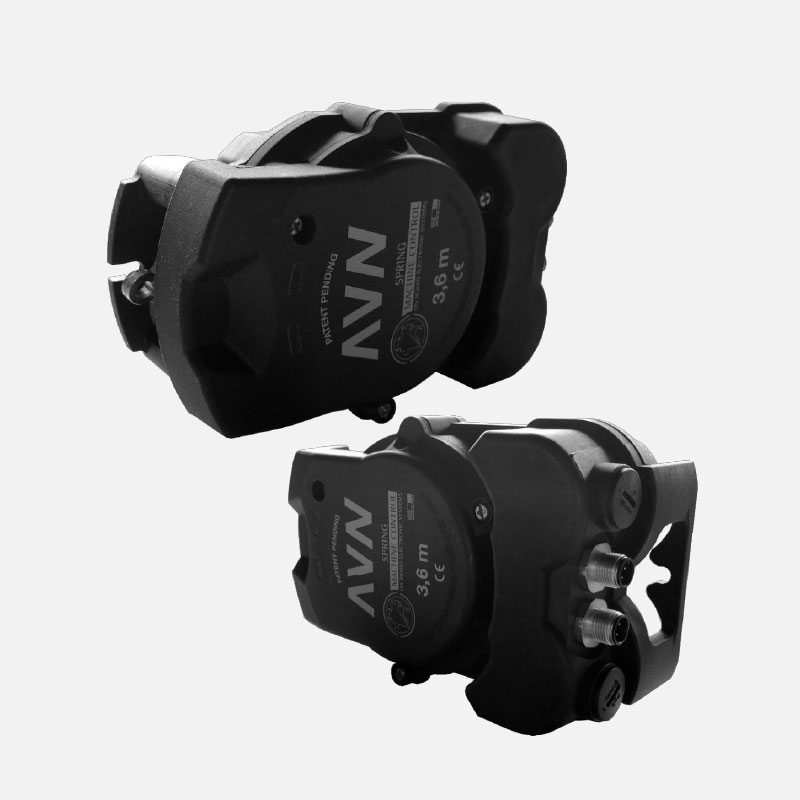

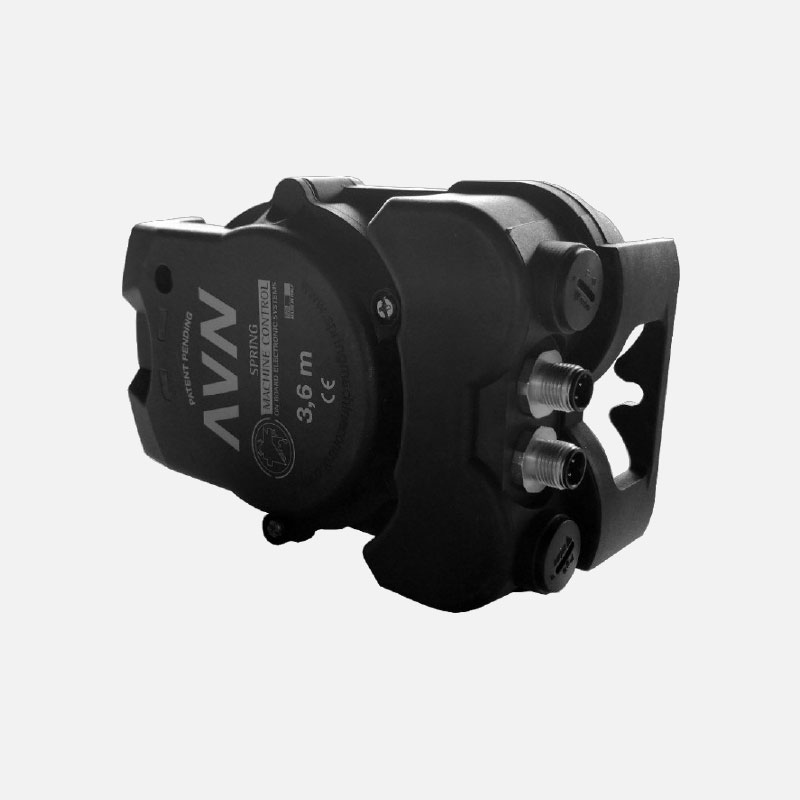

Mini AVN winder

Mini AVN winder

AVN is a mini coiler designed to read the position of the outrigger or aerial platform boom, the angle of the boom, the foot on the ground, even with redundant signals.

Strengths

  • Available in analogue, 4-20 mA version (1 to 4 outputs)
  • Available in CANopen
  • First and only with preventive maintenance system
  • Openable, inspectable and washable cable reel drum
  • Easy installation without fixing brackets
  • Central cable outlet
  • Unique installation position for both left and right side
  • Low cable outlet, 20mm from the body
  • IP66 and PL D
  • Steel cable and metal ring at the end of the cable
  • Available with simple or redundant signal
  • Drum locking screw
Mini AVN winder
Mini AVN winder
Mini AVN winder
Mini AVN winder is available for:

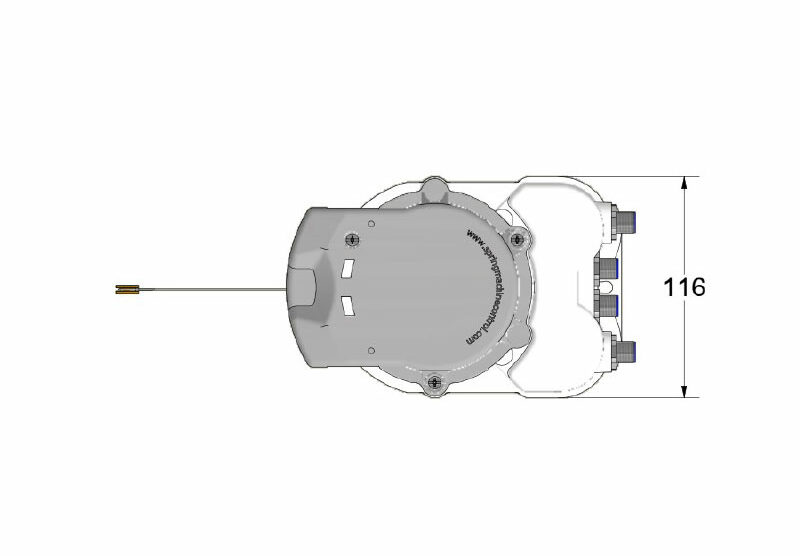

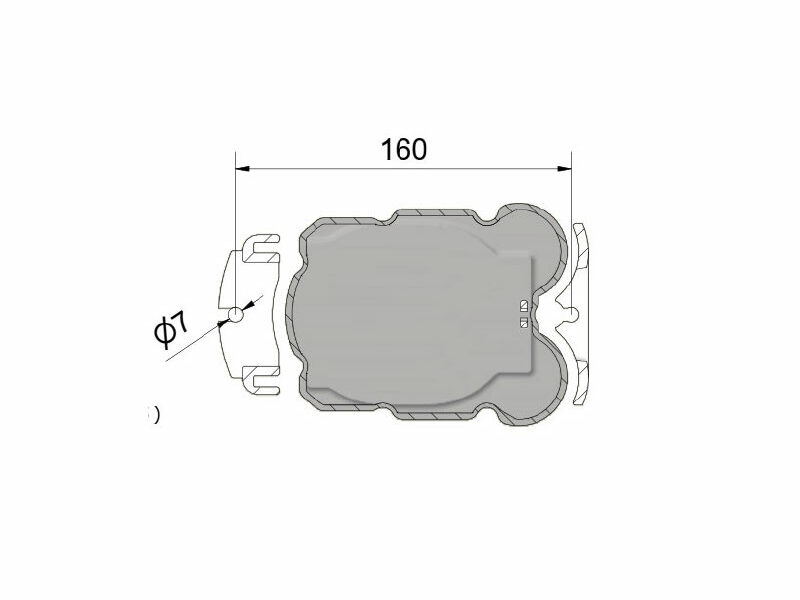

Dimensions

First and only with preventive maintenance system

Technical specifications

MODELLOLungh. cavoSegnale sempliceSegnale ridondatoUscita del cavoUscite
AVN Analogico2.0m / 3.6m / 5.5m /
6.5m / 8m		VVcentrale1-4-uscite
4-20 mA
AVN CANopen2.0m / 3.6m / 5.5m /
6.5m / 8m		VVcentrale1-4 uscite



Fields of use

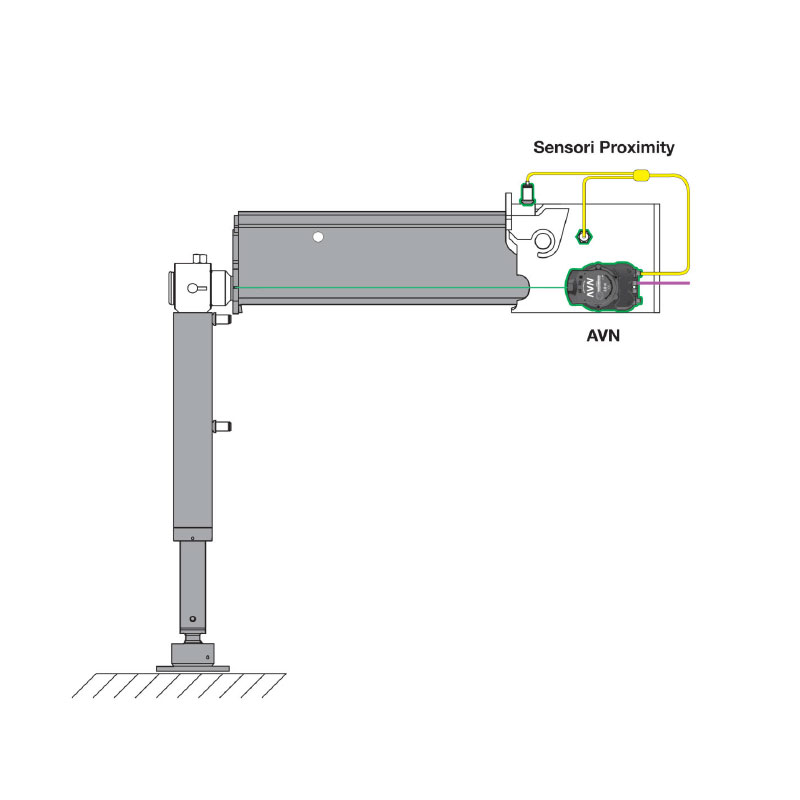

Read stabiliser extension + foot on ground and added signals (e.g. pressure)

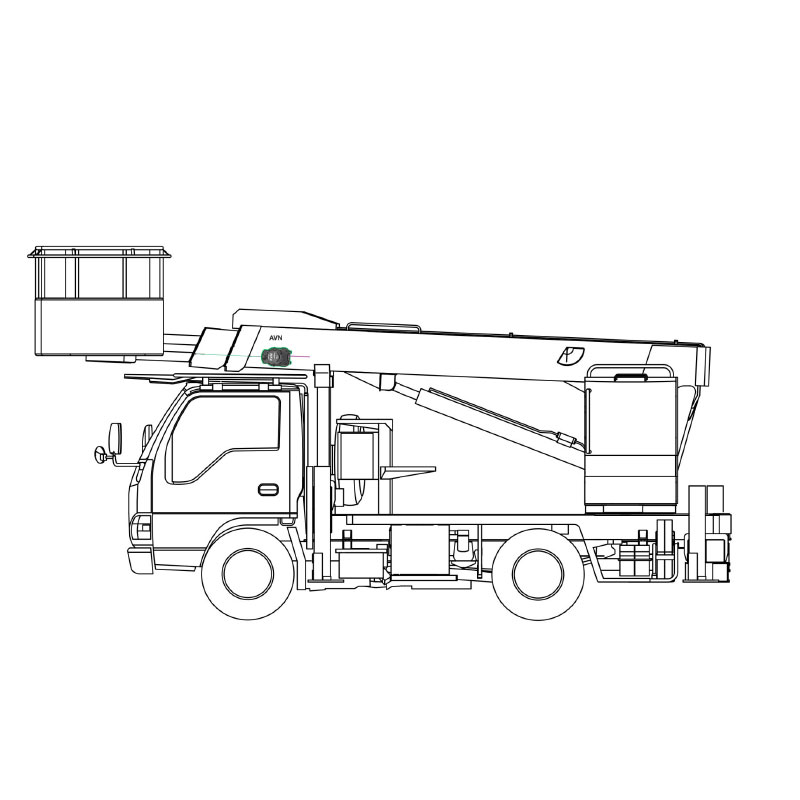

Read out aerial platform boom extension + boom angle and added signals
