Thrifty Led

Moment Limiter for Industrial Machines

THRIFTY LED is a very versatile system, designed to be installed on various industrial vehicles.
The control software is a powerful moment limiter, which can also be integrated with the Traffic Light, external beeper light and the Black Box, to store what happens to the machine during work phases.

The system meets the requirements of EN ISO 13849-1 and 13849-2 PL c.

Strengths

  • Data loading with USB stick
  • Modules – sensors – electronic boards IP65
  • Pressure Sensors or GDA
  • Integrated road safety
  • Data logger

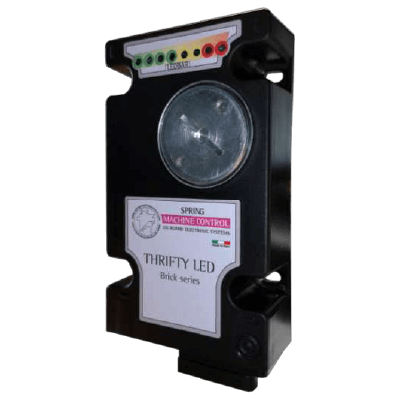

Thrifty Led
Thrifty Led
Thrifty Led is available for:
Auto Cranes
Loaders
Industrial loaders
Excavators
Backhoe crane
Lattice crane
Cranes
Platforms
Aerial platforms
Pompe per calcestruzzo
Scissor lift
Telehandler

System - Pressure Sensors

Thrifty Led

Thrifty Led
Thrifty Led
Pressure transducer

Pressure transducer

Outdoor Acoustic Warning Light Traffic Light

Outdoor Acoustic Warning Light Traffic Light

System - GDA

Outdoor Acoustic Warning Light Traffic Light

Outdoor Acoustic Warning Light Traffic Light
Thrifty Led
GDA load cells

GDA load cells

The System

THRIFTY LED is a Momentum Limiter. The system monitors the operating pressure of the main cylinder (ARM1). When the machine is in an overload condition, the only movement allowed is the retraction of the arm extension. -100%: when lit at the same time as the 90% LED , the system is overloaded (rotation, retraction and RESET are the only manoeuvres allowed). When 90% is off , the system is in overload mode ( retraction is the only manoeuvre allowed). -90% : lights up when 90% overload pressure is reached.

Thrifty Led

Data sheet

The THRIFTY LED system is particularly suitable as a moment limiter for industrial machines.

The Moment Limiter handles:

  • Pressure Sensors
  • GDA Sensors
  • Data logger
  • Two different work areas in automatic, selected by digital input
  • TRAFFIC LIGHT control output management (OPTIONAL)
  • DAMP VALVE control output management
  • Feedback management output DAMP VALVE limiter
Download brochure

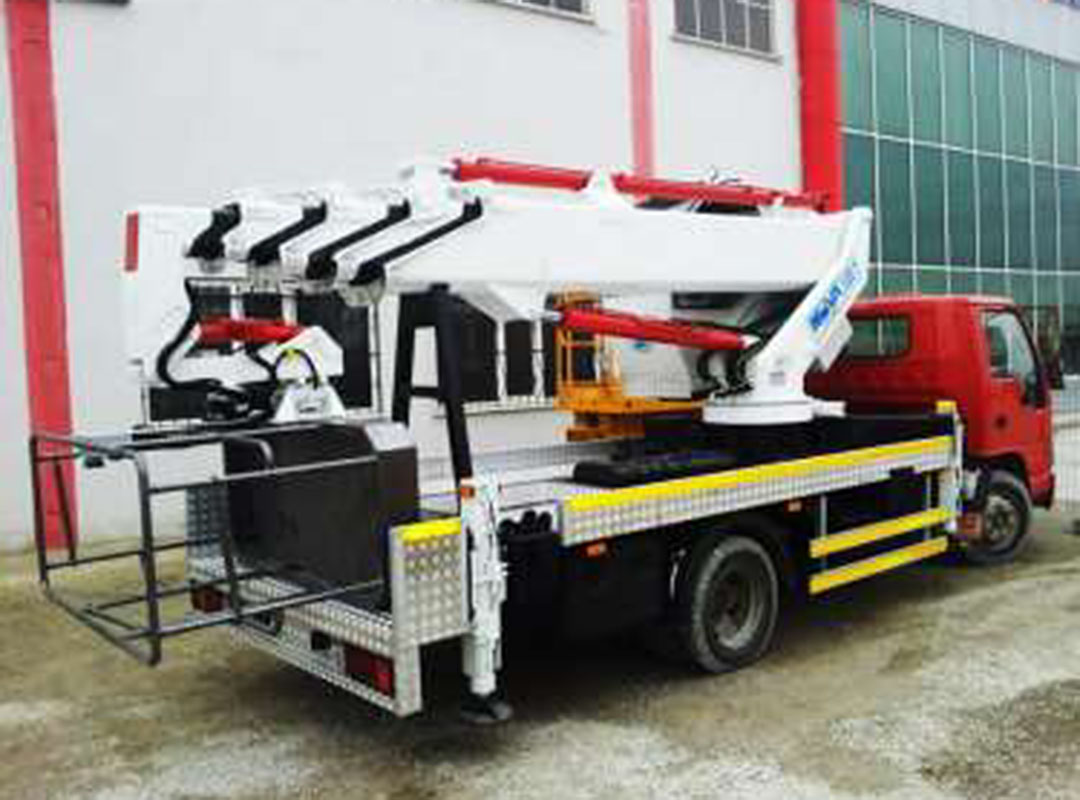

Gallery and applications
